Solis-mini-2.5KW-4G Inverter
10000.00 - 100000.00 INR/Piece
Product Details:
- Supply Ability : 10 , , Piece Per Day
- Click to view more
X
Price And Quantity
- 1 , , Piece
- 10000.00 - 100000.00 INR/Piece
Trade Information
- 10 , , Piece Per Day
- 3 Days
- All India
Product Description

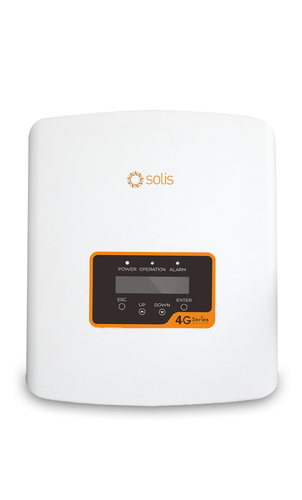

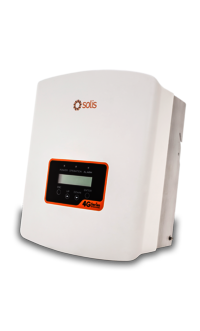

SOLIS 2.5KW inverter
- MiNi series
- High frequency switching technology-Smallersmarter
- DRM integrated fully comply with AS47772:2015
- Compact and lightweight
- 50V-500V input voltage range- ultra low startup
- 97.5% Max.efficiency
- Precise MPPT algorithm
- Intergrated Export Power Manager(EPM)
- RS485 WiFi/GPRS (optional) interface
- WiFi monitoring available---iphone and android app available
- 5 years standard warranty 20 years optional upgrade
Technical Specification
| Model | Solis-mini-2500-4G |
| Energy Source | PV |
| Input Side DC | |
| Max. DC input power(kW) | 3 |
| Max. DC input voltage(V) | 600 |
| Start-up voltage(V) | 90 |
| MPPT voltage range(V) | 80-500 |
| Max. input current(A) | 11A |
| MPPT number/Max input strings number | 1/A:1 |
| Output Side AC | |
| Rated output power(kW) | 2.5 |
| Max. apparent output power(kVA) | 2.8 |
| Max. output power(kW) | 2.8 |
| Rated grid voltage(V) | 220/230 |
| Rated grid frequency(Hz) | 50/60 |
| Operation phase | Single |
| Rated grid output current(A) | 11.4/10.9 |
| Max. output current(A) | 13.3 |
| Power Factor (at rated output power) | 0.8leading ... 0.8lagging |
| THDi (at rated output power) | <3% |
| DC injection current(mA) | <0.5%In |
| Grid frequency range(Hz) | 47-52 or 57-62 |
| Efficiency | |
| Max.efficiency | 97.5% |
| EU efficiency | 96.8% |
| MPPTefficiency | >99.5% |
| Protection | |
| DC reverse-polarity protection | Yes |
| Short circuit protection | Yes |
| Output over current protection | Yes |
| Output over voltage protection | Yes |
| Insulation resistance monitoring | Yes |
| Residual current detection | Yes |
| Surge protection | Yes |
| Islanding protection | Yes |
| temperature protection | Yes |
| Integrated DC switch | Optional |
| General Data | |
| Dimensins(mm) | 310W*373H*160D |
| Weight(kg) | 7.7 |
| Topology | Transformerless |
| Self consumption (night) | <1W(Night) |
| Operating ambient temperature range | -25~60 |
| Ingress protection | IP65 |
| Noise emission{typical} | <20dBA |
| Cooling concept | Natural convection |
| Max.operation altitude | 4000m |
| Designed lifetime | >20years |
| Grid connection standard | EN50438 G83/2 AS4777.2:2015 VDE0126-1-1 IEC61727 VDE N4105 |
| Relative humidity | 0~100% |
| Safty/EMC standard | IEC62109-1/-2 NB/T 32004 EN61000-6-1 EN61000-6-3 |
| Features | |
| DC connection | MC-4 mateable |
| AC connection | IP67rated plug |
| Display | LCD2—20 Z. |
| Communication connections | 4 pins RS485 connector |
| Warranty | 5years standard (extand to 20 years) |
