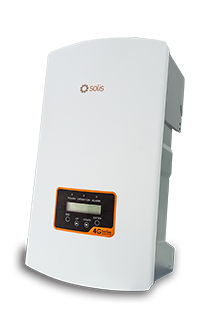

Solis inverter 8kw - 4G Three Phase
Product Code : SOLIS-3P8K-4G
Brand Name : Solis
Product Description
Main Features:
â— Solis 4G Three Phase Range
â— 160V-850V MPPT voltage range-ultra low startup
â— Dual MPPT design with precise MPPT algorithm
â— THDi<1.5%low harmonic distortion against grid
â— Over 98.7% Max.efficiency
â— RS485WiFi/LAN/GPRS(optional) interface
â— Multiple protections levels
â— WiFi monitoring available-iphone and android app available
â— 5 years standard warranty20 years optional upgrade
Product Specifications:
| Model | Solis-3P8K-4G |
| Energy Source | PV |
| Input Side(DC) |
|
| Max. DC input power(kW) | 9.6 |
| Max. DC input voltage(V) | 1000 |
| Start-up voltage(V) | 180 |
| MPPT voltage range(V) | 160-850 |
| Max. input current(A) | 11A+11A |
| MPPT number/Max input strings number | 2/2 |
| Output Side (AC) |
|
| Rated output power(kW) | 8 |
| Max. apparent output power(kVA) | 8.8 |
| Max. output power(kW) | 8.8 |
| Rated grid voltage(V) | 400 |
| Rated grid frequency(Hz) | 50/60 |
| Operation phase | 3/N/PE |
| Rated grid output current(A) | 11.5 |
| Max. output current(A) | 12.7 |
| Power Factor (at rated output power) | 0.8 leading...0.8lagging |
| THDi (at rated output power) | <1.5% |
| DC injection current(mA) | <0.5%In |
| Grid frequency range(Hz) | 47-52 或 57-62 |
| Efficiency |
|
| Max.efficiency | 98.7% |
| EU efficiency | 98.1% |
| MPPTefficiency | >99.5% |
| Protection |
|
| DC reverse-polarity protection | Yes |
| Short circuit protection | Yes |
| Output over current protection | Yes |
| Output over voltage protection | Yes |
| Insulation resistance monitoring | Yes |
| Residual current detection | Yes |
| Surge protection | Yes |
| Islanding protection | Yes |
| Temperature protection | Yes |
| Integrated DC switch | Optional |
| General Data |
|
| Dimensins(mm) | 310W*538H*158D |
| Weight(kg) | 14.1 |
| Topology | Transformerless |
| Self consumption (night) | <1W(Night) |
| Operating ambient temperature range | -25~60℃ |
| Ingress protection | IP65 |
| Noise emission{typical} | <30dBA |
| Cooling concept | Natural convection |
| Max.operation altitude | 4000m |
| Designed lifetime | >20years |
| Grid connection standard | EN50438 G59/3 AS4777 VDE0126-1-1 IEC61727 |
| Relative humidity | 0~100% |
| Safty/EMC standard | IEC62109-1/-2 AS3100 EN61000-6-1 EN61000-6-3 |
| Features |
|
| DC connection | MC4 |
| AC connection | Terminal connectors |
| DisplayLCD2×20 Z. | LCD,2×20Z. |
| Communication connections | 4 pins RS485 connector |
| Warranty | 5 years standard (extend to 20 years) |
