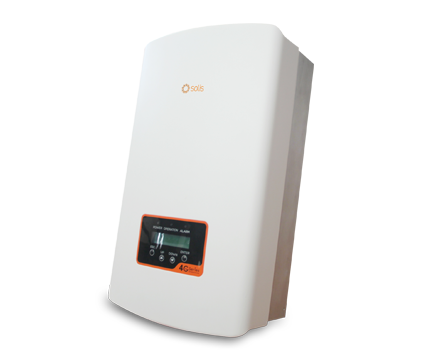

Solis inverter 20kw - 4G Three phase

Solis inverter 20kw - 4G Three phase

10000.00 - 100000.00 INR/Piece

Product Details:


Price And Quantity

  • 10000.00 - 100000.00 INR/Piece
  • 1 Piece

Trade Information

  • 10 Piece Per Day
  • 3 Days
  • All India

Product Description

Main Features:

  • Solis 4G Three Phase Range
  • 160V-850V MPPT voltage range-ultra low startup
  • Dual MPPT design with precise MPPT algorithm
  •  THDi<1.5%low harmonic distortions against grid
  •  Over 98.7% Max.efficiency
  •  RS485WiFi/LAN/GPRS(optional) interface
  •  Multiple protections levels
  •  WiFi monitoring available-iphone and android app available
  •  5 years standard warranty20 years optional upgrade


    Product Specifications:

    Model Solis-3P20K-4G
    Energy Source PV
    Input Side(DC)
    Max. DC input power(kW) 24
    Max. DC input voltage(V) 1000
    Start-up voltage(V) 180
    MPPT voltage range(V) 160-850
    Max. input current(A) 22A+22A
    MPPT number/Max input strings number 2/4
    Output Side (AC)
    Rated output power(kW) 20
    Max. apparent output power(kVA) 22
    Max. output power(kW) 22
    Rated grid voltage(V) 400
    Rated grid frequency(Hz) 50/60
    Operation phase Three
    Rated grid output current(A) 28.9
    Max. output current(A) 31.8
    Power Factor (at rated output power) 0.8 leading...0.8lagging
    THDi (at rated output power) <1.5%
    DC injection current(mA) <0.5%In
    Grid frequency range(Hz) 47-52 - 57-62
    Max.efficiency 98.7%
    EU efficiency 98.1%
    MPPTefficiency >99.5%
    DC reverse-polarity protection Yes
    Short circuit protection Yes
    Output over current protection Yes
    Output over voltage protection Yes
    Insulation resistance monitoring Yes
    Residual current detection Yes
    Surge protection Yes
    Islanding protection Yes
    Temperature protection Yes
    Integrated DC switch lagging
    General Data
    Dimensins(mm) 310W*563H*219D
    Weight(kg) 19.8
    Topology Transformerless
    Self consumption (night) <1W(Night)
    Operating ambient temperature range -25~60
    Ingress protection IP65
    Noise emission{typical} <30dBA
    Cooling concept  lntelligent redundant fan-cooling
    Max.operation altitude 4000m
    Designed lifetime >20years
    Grid connection standard EN50438 G59/3 AS4777 VDE0126-1-1 IEC61727
    Relative humidity 0~100%
    Safty/EMC standard IEC62109-1/-2 AS3100 EN61000-6-1 EN61000-6-3
    DC connection MC4
    AC connection Terminal connectors
    DisplayLCD2×20 Z. LCD,2×20Z.
    Communication connections 4 pins RS485 connector
    Warranty 5 years standard (extend to 20 years)
